Long Lifespan Honeywell Pressure Transmitter STD820-EIAN4AS-1-A-ADD-11S-B-0IA0-F1-0000

Ironman Technology Co.,LTD

About us:

We specializes in automation parts and industrial controls, PLCS,DCS,Module/Board,Power supply,Controller, etc.We maintains an inventory of new and obsolete parts utilized in all areas of the manufacturing and industrial sectors.

Featured Brand:
● HONEYWELL ● AB ● OMRON ●SIEMENS ●SCHNEIDER

● ROSEMOUNT● ABB ● NOTIFIER ●MTL ● GE   ●And many more !

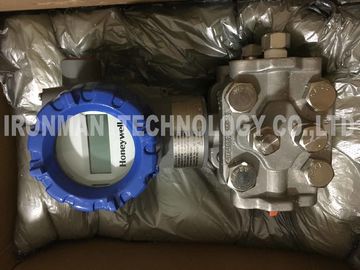

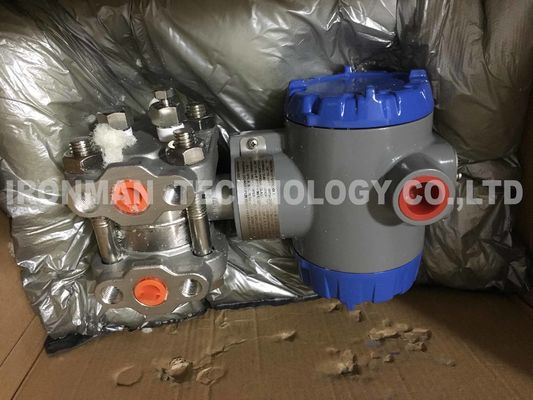

STD820-EIAN4AS-1-A-ADD-11S-B-0IA0-F1-0000 DIFFERENTIAL PRESSURE TRANSMITTER

Lead time:2 WEEKS

New with one year warranty

Introduction

Part of the SmartLine® family of products, the STD800 is a high performance differential pressure transmitter featuring piezoresistive sensor technology. By combining differential pressure sensing with on chip static pressure and temperature compensation the STD800 offers high accuracy and stability over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Features: o Accuracies up to 0.035% standard & 0.025% Opt o Stability up to 0.01% of URL per year for 15 years o Automatic static pressure & temperature compensation o Rangeability up to 400:1 o Response times as fast as 90ms o Multiple local display capabilities o External zero, span, & configuration capability o Polarity insensitive electrical connections o Comprehensive on-board diagnostic capabilities o Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0 o World class overpressure protection o Full compliance to SIL 2/3 requirements. o Modular design characteristics o Available with 15-year warranty o Plugged Impulse Line Detection Option o Dual/Triple Calibration Option (HART & Fieldbus only)

Communications/Output Options: o 4-20mA dc o Honeywell Digitally Enhanced (DE) o HART ® (version 7.0) o FOUNDATION™ Fieldbus All transmitters are available with the above listed communications protocols.

Description The SmartLine family of gauge pressure, differential pressure, and absolute pressure transmitters is designed around a high performance piezo-resistive sensor. This one sensor integrates multiple sensors linking process pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements resulting in the best total performance available. This level of performance allows the ST 800 to replace virtually any competitive transmitter available today.
