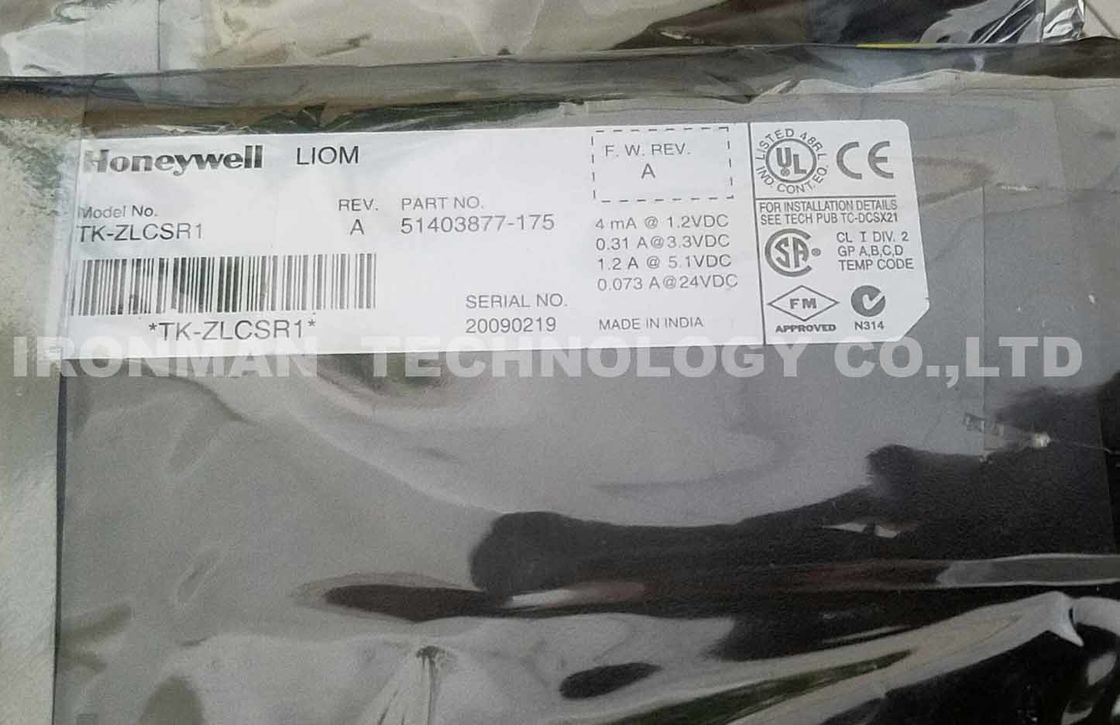

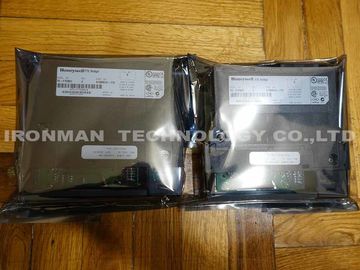

51403877-175 TK-ZLCSR1 LIOM MODULE, 24VDC PLC MODULE Honeywell
Lead time:3-5 days
New with one year warranty
Overview of LIOM
LIOM as an integration solution
The Legacy Input/Output Link Module (LIOM) is an integration Controller designed for
integrating the LCS621 serial I/Os with the Experion Process Knowledge System
(EPKS). The LIOM resides in the Experion PKS chassis, replacing the LCS620
processor rack. As an integration solution, the LCS620 ladder logic programming has
been replaced with the LIOM function block programming. The Experion Control
Builder has replaced the Loader tool used in LCS620 for building control strategies. The
LCS621 serial I/O subsystem has been reused in LIOM without any modifications. For
information about I/O modules, see I/O Modules supported by LIOM.
LIOM is a doublewide, two-slot module in the EPKS chassis. The LIOM together with
other standard modules in the EPKS chassis replaces the LCS620 processor rack. By
performing a dual role of a Controller and a serial link interface, the LIOM replaces the
LCS620 processor and the Serial Link Module (SLM) in the LCS620 processor rack. The
LCS621 I/O subsystem has been integrated with EPKS without any modifications.
For serial interfacing, the LIOM module has two serial ports through which
communication with the serial I/O subsystem is established. As illustrated in the
architecture diagram, the serial link from LIOM begins with the RJ-45 cable that
terminates at one end of the Phoenix Contact RJ-45 connector. The Belden cable from
the Serial I/O Module (SIOM) in the I/O rack terminates at the other end of the Phoenix
Contact RJ-45 connector. The serial communication continues from SIOM-to-SIOM
through the Belden cable.
The supervisory network communication is established through the ControlNet Interface
(CNI) or the Fault Tolerant Ethernet Bridge (FTEB) module that resides in the EPKS
chassis with LIOM.
