16 CH Honeywell PLC Module PW6K1OUT PW Series Relay 12 Output Module Durable

PW-SERIES ACCESS MODULES
(PW5K1R1, PW6K1R2, PW6K1IN, PW6K1OUT)

The PW-Series family of access control modules are controlled by and connected to the intelligent control module, PW6K1IC or PW3K1IC, through a supervised RS485 bus at 38,400 bps. Hardware interface configuration options are stored in the intelligent control module and may be directly controlled via operator intervention, time schedules, or event-based procedures.

The access modules have been designed to allow for a modular customizable solution. The PW5K1R1 provides I/O support for a single card access reader, while the PW6K1R2 supports two card access readers. In the event that communication to the intelligent control module is lost, the readers can be individually configured to allow entrance based on security needs. This customization allows for a door to be configured as locked or unlocked, or accessed only via valid facility code. The PW6K1R2 also has an RS485 serial port to facilitate communications to third party reader and field device controllers.

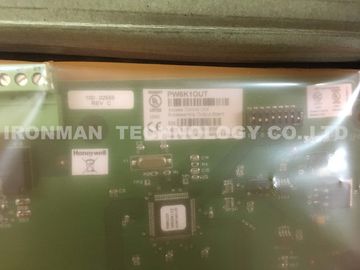

The PW6K1OUT interfaces with the intelligent control module (PW6K1IC or PW3K1IC) providing up to 16-relay output control —12 relays on the front edge. Relays may be used for elevator control, status annunciation and for general facility control, such as door monitoring.

The PW6K1IN interfaces with the intelligent control module (PW6K1IC or PW3K1IC) providing 16 supervised alarm inputs. An analog to digital converter samples the input values and the digitized result is filtered and processed. Filter parameters are configurable for each input point, resulting in the ability to specify a custom end-of-line (EOL) resistance value, sensitivity range and timing parameter.

The PW-Series access modules have been designed to accommodate various mounting options. Units can be wall mounted in a high density configuration (PW5K2ENC1) when space is limited, a 19" rack configuration (PW5K2ENC2), or in a tile mount configuration (PW5K1ENC3).

Part Number
PW-Series Access Modules

• Modular design fits a wide variety of applications
• User programmable relay outputs allow for specific control needs
• User programmable alarm inputs offer flexible system configuration and control
• RS485 communication to all modules
• Dedicated cabinet tamper and power monitor inputs
• Analog to digital converter technology provides digital filtering and input conditioning
• Supports the choice of Normally Open/Normally Closed, supervised, and non-supervised circuits
• Supports a wide range of reader technologies including Wiegand, magnetic stripe, proximity, and keypad
• Up to nine modules, power supply and battery can be accommodated by the PW5K2ENC1, PW5K2ENC2, and PW5K2ENC5 enclosure
• System off-line modes customizable per reader include facility code access, locked (no access), and unlocked (full access)
• Supports multiple reader and card formats for maximum flexibility and security options
• Operating modes include locked, unlocked, facility code, card only, card and PIN, card or PIN and PIN only
• Any combination of 32 I/O or reader modules may be connected to the PW6K1IC RS485 ports. 4,000 feet / 1,250 meters total bus length per port (a max. 16 I/O or reader board may connect to the PW3K1IC)
• Alarm circuit type – Normally Open/Normally Closed, nonsupervised, supervised (with correct EOL)
• UL294 / UL1076 and CUL Listed

Ironman Technology Co.,LTD

About us:

We specializes in automation parts and industrial controls, PLCS,DCS,Module/Board,Power supply,Controller, etc.We maintains an inventory of new and obsolete parts utilized in all areas of the manufacturing and industrial sectors.

Featured Brand:
● HONEYWELL ● AB ● OMRON ●SIEMENS ●SCHNEIDER

● ROSEMOUNT● ABB ● NOTIFIER ●MTL ● GE ●And many more !

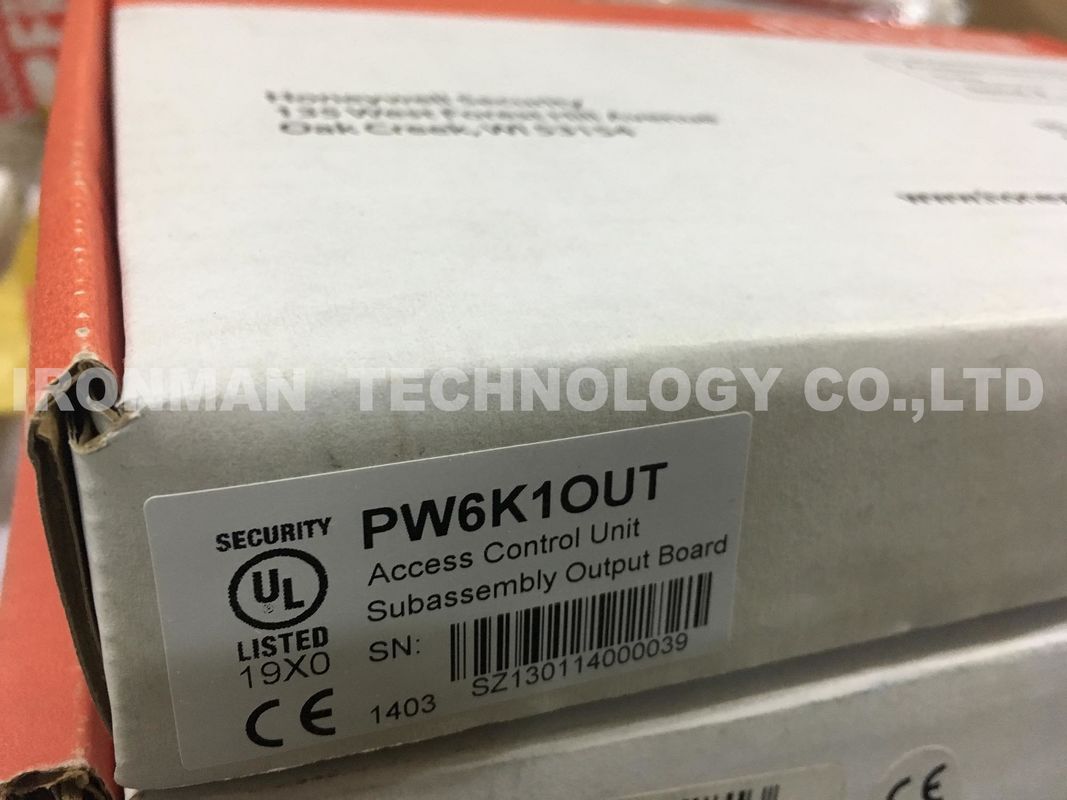

PW6K1OUT PW-Series Relay 12 Output Module 16 CH Honeywell Brand new

Lead time:3-5 days

New with one year warranty
