Wireless Rosemount Pressure Transmitter Super Module Hart 4-20mA 3051S2CG4

Features

• Ultra, ultra for flow, and classic performance
• 4-20 mA HART, Wireless, FOUNDATION fieldbus protocols
• Gauge, differential or absolute measurements
• Remote Display and Interface options
• Ranges up to 4000psi (275 bar)
• Zero and span adjustment
• PlantWeb alerts
• Burst pressure limit: 10,000 psig (689.5 bar)

The Rosemount 3051S Coplanar Pressure Transmitters are the industry leader for Differential, Gauge, and Absolute pressure measurement. The Coplanar Platform allows seamless integration with manifolds, primary elements, and seal solutions.

The 3051S Coplanar Pressure Transmitter series of Instrumentation can optimize your operation in four critical areas: production, quality, energy efficiency, and safety and environment. By leveraging the power of the scalable Rosemount 3051S across your entire operation, you will minimize process variability, gain greater process insight, reduce maintenance and downtime, and meet regulatory demands. What's more, it's easy for your people to use, ensuring you will realize the full potential of your measurement investment.

With the Rosemount 3051 Pressure Transmitter, you’ll gain more control over your plant. You’ll be able to reduce product variation, and complexity as well as your total cost of ownership by leveraging one device across a number of pressure, level, and flow applications. You’ll have access to information you can use to diagnose, correct, and even prevent issues. And with unparalleled reliability and experience, the Rosemount 3051 is the industry standard that will help you perform at higher levels of efficiency and safety so you can remain globally competitive.

Setting the standard for pressure measurement Proven best-in-class performance, reliability and safety  More than seven million installed  Reference accuracy 0.04 percent of span  Installed total performance of 0.14 percent of span  10-year stability of 0.2 percent of URL  SIL2/3 certified (IEC 61508) Maximize installation and application flexibility with the coplanar platform  Improve reliability and performance with integrated DP Flowmeters, DP Level solutions and integral manifolds  Easy installation with all solutions fully assembled, leak-tested and calibrated  Meet your application needs with an unsurpassed offering

Advanced functionality Power advisory diagnostics  Detect on-scale failures caused by electrical loop issues before they impact your process operation  This capability is safety certified for your most critical applications Local operator interface (LOI)  Straightforward menus and built-in configuration buttons allow you commission the device in less than a minute  Configure in hazardous-area locations without removing the transmitter cover using external buttons

Industry leading capabilities extended to IEC 62591 (WirelessHART®)  Cost effectively implement wireless on the industry's most proven platform  Optimize safety with the industry's only intrinsically safe power module  Eliminate wiring design and construction complexities to lower costs by 40 to 60 percent  Quickly deploy new pressure, level and flow measurements in 70 percent less time Innovative, integrated DP Flowmeters  Fully assembled, configured, and leak tested for out-of-the-box installation  Reduce straight pipe requirements, lower permanent pressure loss and achieve accurate measurement in small line sizes  Up to 1.65 percent volumetric flow accuracy at 8:1 turndown Proven, reliable, and innovative DP Level Technologies  Connect to virtually any process with a comprehensive offering of process connections, fill fluids, direct mount or capillary connections and materials  Quantify and optimize total system performance with QZ option  Operate at higher temperature and in vacuum applications  Optimize level measurement with cost efficient Rosemount Tuned-System™ Assemblies

Instrument manifolds – quality, convenient, and easy  Designed and engineered for optimal performance with Rosemount transmitters  Save installation time and money with factory assembly  Offers a variety of styles, materials and configurations

Ironman Technology Co.,LTD


About us:

We specializes in automation parts and industrial controls, PLCS,DCS,Module/Board,Power supply,Controller, etc.We maintains an inventory of new and obsolete parts utilized in all areas of the manufacturing and industrial sectors.

Featured Brand:
● HONEYWELL ● AB ● OMRON ●SIEMENS ●SCHNEIDER
● ROSEMOUNT● ABB ● NOTIFIER ●MTL ● GE   ●And many more !

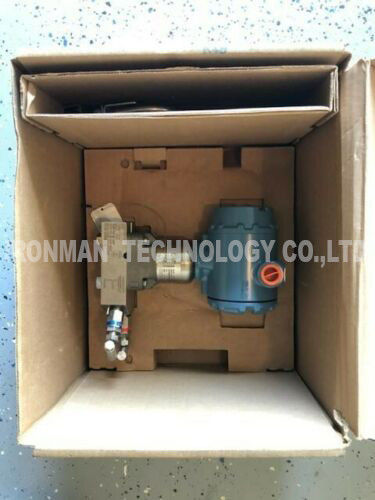

Rosemount 3051S2CG4 Pressure Transmitter SuperModule Hart 4-20mA

Lead time:2 WEEKS

New with one year warranty
